C65 Moving Iron Core Process Improvement Plan
Publish Time: 2025-05-29

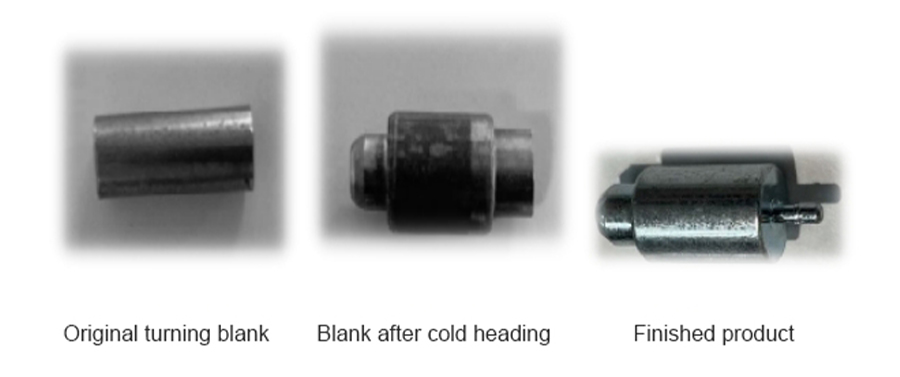

1. Net weight of the original turning blank: 4.98g, two-end turning processing.
Net weight of the blank after cold heading: 3.92g, 1.06g less than the original process blank, and the material cost decreased by 21%.

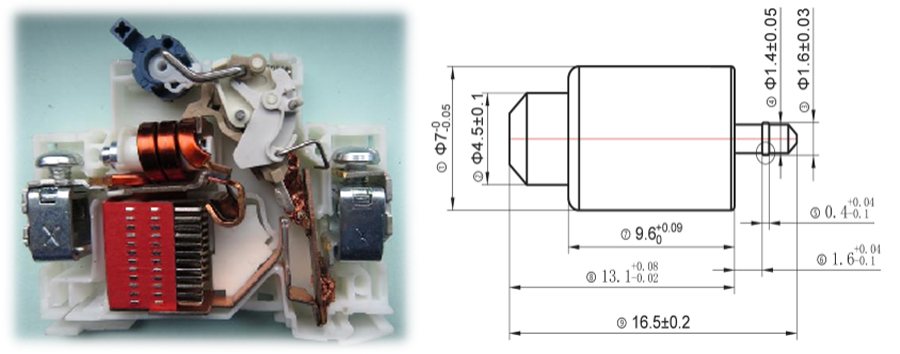

2. The original turning volume was 16.5 and turned to 13.1, and the turning volume was φ 7mm- φ 2mm/2=2.5.
Single-head turning after cold heading, the current turning volume is φ 5mm- φ 2mm/2=1.5, the turning volume is reduced by 40%, and the turning 9.6 and 13.1 dimensions are more stable.
3. The original turning capacity is 8 pieces/minute.
After cold heading, the capacity is 12 pieces/minute, and the efficiency is increased by 33%
